BL24XU OUTLINE

問い合わせ番号

INS-0000000310

ABSTRACT

  This beamline was designed for conducting various experiments performed by industrial users. Employing a figure-8 undulator which can provide both vertically and horizontally polarized hard X-rays, two experimental tandem hutches (A1-A2 and B2-B1) can be operated simultaneously. A double-crystal monochromator composed of diamond crystals is adopted to introduce monochromatized X-rays to the experimental hutches A1 and A2. Microbeam small- and wide-angle X-ray scattering for local structure analysis is operated in hutch A1. Surface/interface analysis by fluorescent X-ray analysis, strain measurements and grazing incidence X-ray diffraction are operated in hutch A2. A double-crystal monochromator composed of silicon crystals is adopted to introduce monochromatized X-rays to the experimental hutches B2 and B1. Micro-XAFS, scanning/imaging microscope, micro-tomography are operated in hutch B2. Studies of microstructure of electronic device materials and bright field X-ray topography are operated in hutch B1.

AREA OF RESEARCH

  • Surface/interface analysis for industry by fluorescent X-ray analysis, strain measurements and grazing incidence X-ray diffraction.
  • Microbeam small- and wide-angle X-ray scattering for local structure analysis.
  • Micro-XAFS.
  • Scanning and imaging microscope, micro-tomography.
  • Studies of Microstructure of Electronic Device Materials.
  • Bright field X-ray topography.

KEYWORDS

  • Scientific field
    SAXS, WAXS, Surface/interface analysis, Micro-XAFS, Scanning/imaging microscopy, micro-tomography, Strain measurements, topography
  • Equipment
    Bonse-Hart type ultra-SAXS, Small- and wide-angle X-ray scattering, Micro-XAFS, Scanning/imaging X-ray microscopes, High resolution X-ray diffractometer, HAXPES

SOURCE AND OPTICS

  • X-rays at sample
Energy Range 4.5 ~ 35 keV
Energy resolution ΔE/E < 10-4
Photon flux ∼ 1012 photons/s
Beam size < 1 mm

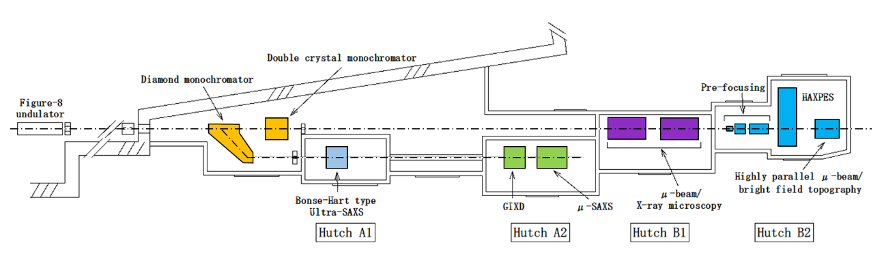

Schematic View of Beamline
Schematic View of Beamline

EXPERIMENTAL STATIONS

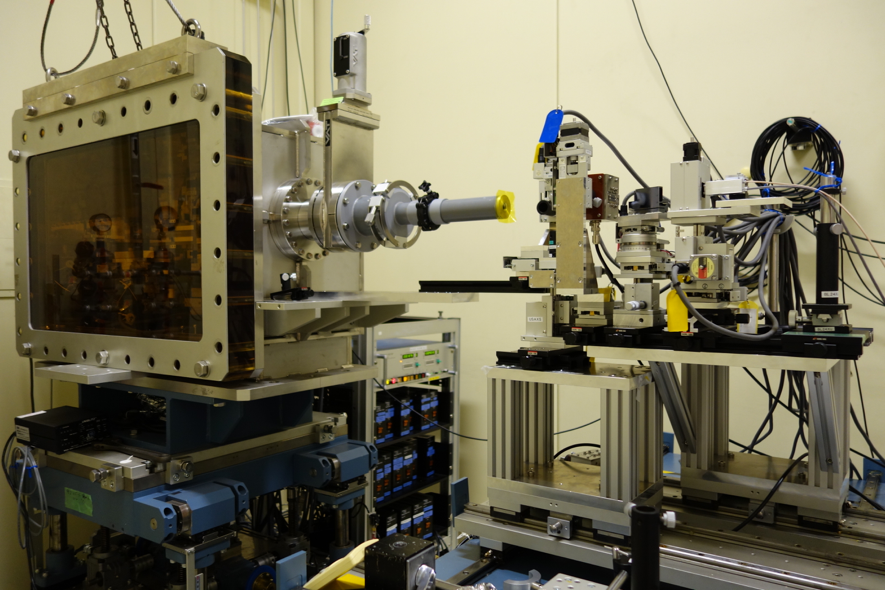

Hutch A1
Hutch A1

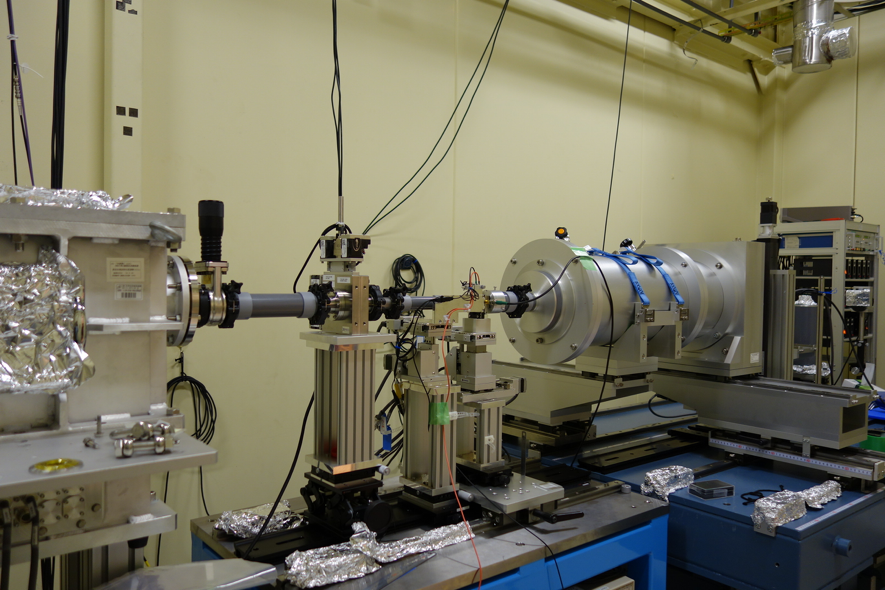

Hutch A2
Hutch A2

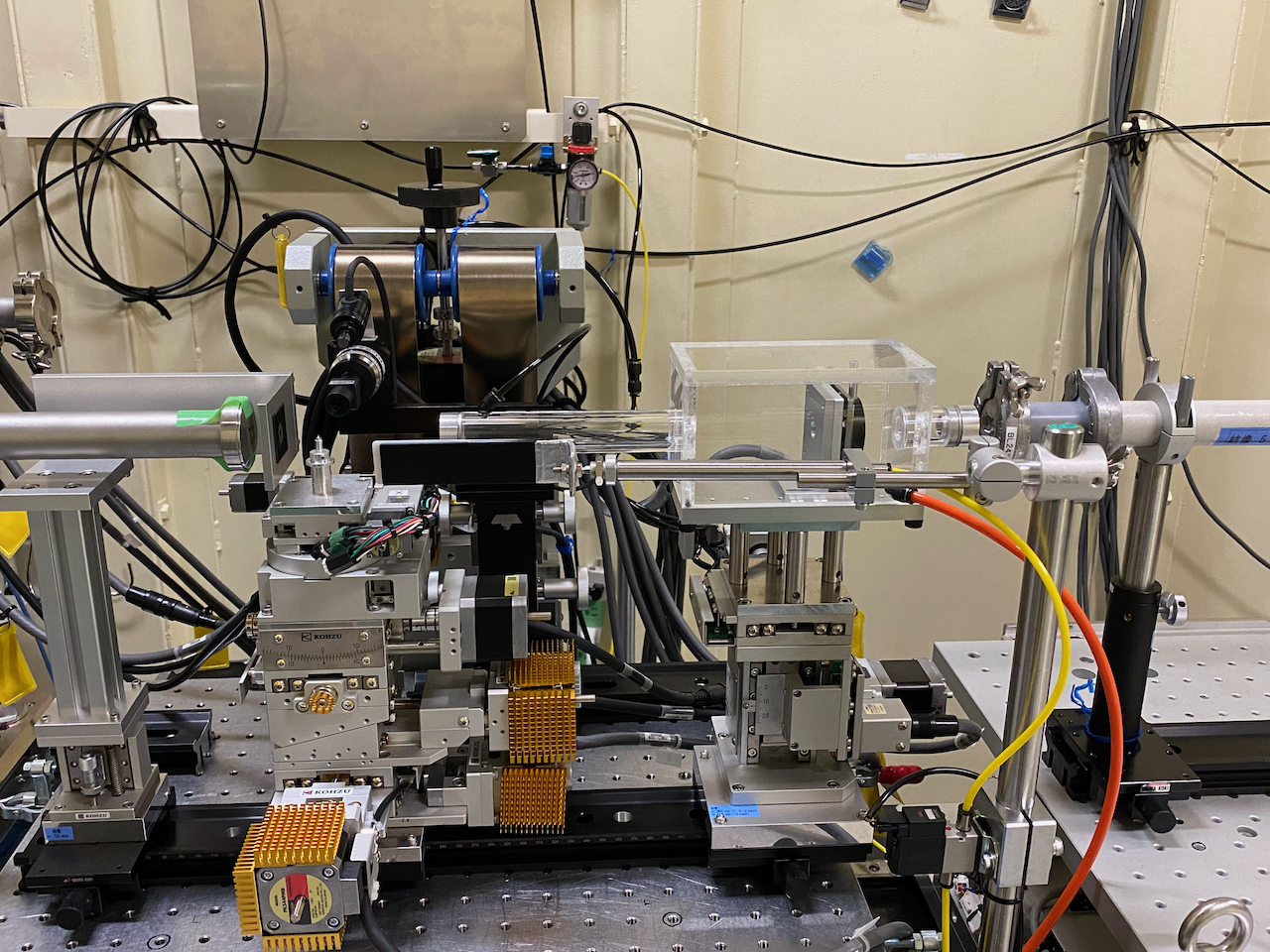

Hutch B2
Hutch B2

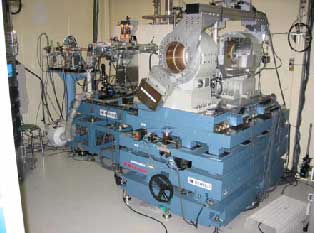

Hutch B1
Hutch B1
