BL01B1 Lytle detector
Inquiry number
INS-0000000378
Lytle type detector for fluorescence mode XAFS
The Lytle type detector, which is an ionization chamber with large detection area, is available for fluorescence mode XAFS.
| Energy range | 3.8 ∼ 50 keV |
| Sample state | dilute sample concentration > 0.1 % thin film sample thickness > 100 nm |

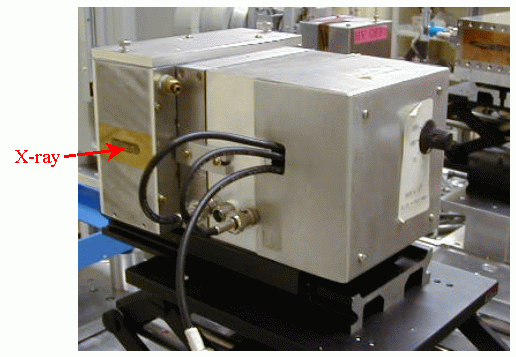

View of Lytle type detector

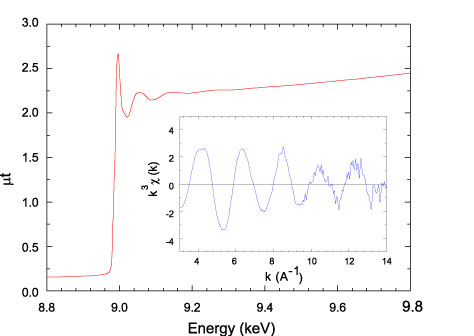

Cu K-edge XAFS spectra of 0.5 wt% Cu/Al2O3 catalyst at room temperature [1].
Reference
- T. Yamamoto, T. Tanaka, et al., Topic. Catal.18,113(2002).
