BL26B1/B2 OUTLINE

Inquiry number

INS-0000000385

ABSTRACT

  BL26B1 & B2 have been developed as RIKEN Structural Genomics Beamline I & II for high throughput protein crystallography (HTPX). The function of the beamline is to collect diffraction data of a large number of protein crystals for structural analysis. In the experimental hutch, an automatic sample changer developed at BL26 is installed to improve the throughput of the experiment. Cooperating with the sample changer, the beamline scheduling software executes the successive data collections without any user intervention. The beamline design is based on the SPring-8 standard optics for the bending magnet, which is simple and remote controllable. Two type X-ray detectors (IP and CCD) can be automatically switched according to the experimental schedule.

AREA OF RESEARCH

  • Structural genomics research based on single crystal X-ray diffraction

KEYWORDS

  • Scientific field
    Structure biology, High throughput, Biological crystallography, MAD
  • Equipment
    Mosaic CCD, Imaging plate, Sample changer, Automatic operation

SOURCE AND OPTICS

  The optics of the beamline consists of standard bending magnet components. A fixed exit Si double crystal monochromator followed by a two dimensional focusing mirror is installed in the optics hutch. A fin-cooling system with the circulation of chiller water is adopted for the first crystal of the monochromator. Available energy range is from 6 to 17 keV that is suitable for MAD experiment using anomalous scattering of heavy atoms. The design of the mirror is the vertically bent cylinder of 1 meter length and glancing in downward direction. The mirror focuses the beam at the experimental hutch with the glancing angle of 3.7 mrad. The surface is Rh-coated for cutting off the high-energy components. The energy resolution of the monochromatic X-ray is 10-4 and the photon flux at the sample position is 1011 photons/sec at 12 keV monochromatic.

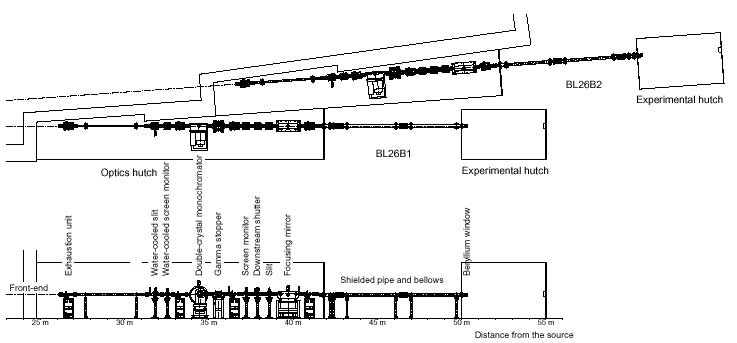

Schematic view of beamlines

EXPERIMENTAL STATIONS

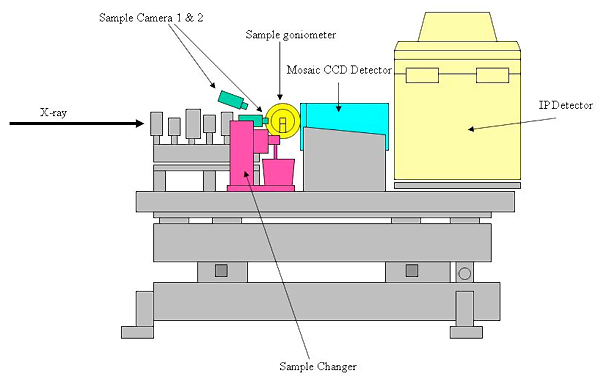

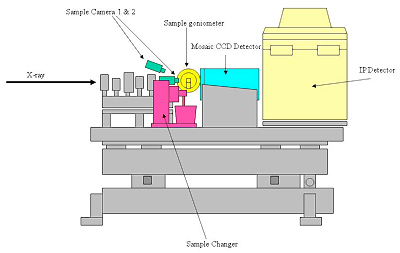

Schematic view of equipments in experimental hutch
