Moiré than meets the eye Researchers make carbon nanotube patterns called moirés for materials research

Release Date
10 Mar, 2021
  • BL26B1 (RIKEN Structural Genomics I)

March 10, 2021
The University of Tokyo

Material behaviors depend on many things including not just the composition of the material but also the arrangement of its molecular parts. For the first time, researchers have found a way to coax carbon nanotubes into creating moiré patterns. Such structures could be useful in materials research, in particular in the field of superconducting materials.

Professor Hiroyuki Isobe from the Department of Chemistry at the University of Tokyo, and his team create nanoscopic material structures, primarily from carbon. Their aim is to explore new ways to create carbon nanostructures and to find useful applications for them. The most recent breakthrough from their lab is a new form of carbon nanotube with a very specific arrangement of atoms that has attracted much attention in the field of nanomaterials.

“We successfully created different kinds of atom-thick carbon nanotubes which self-assemble into complex structures,” said Isobe. “These nanotubes are made from rolled up sheets of carbon atoms arranged hexagonally. We made wide ones and narrow ones which fit inside them. This means the resulting complex tube structure has a double-layered wall. The hexagonal patterns of these layers are offset such that the two layers together create what is known as a moiré pattern. And this is significant for materials researchers.”

You may see moiré patterns in your everyday life. When repeating patterns overlay one another a new resultant pattern emerges. If you then move one of the layers, or if you move relative to the layers, this resultant pattern will change slightly. For example, if you look at a screen door through a mesh curtain, or if you hold two sieves together. In the case of the team’s moiré patterns, they are made when one hexagonal grid of carbon atoms is rotated slightly relative to another similar hexagonal grid.

These patterns aren’t just for show, they can imbue materials with functional properties. Two areas that might especially benefit from the properties created here are synthetic chemistry, as the moiré carbon bilayer tubes could be challenging yet attractive targets of molecular self-assembly, and superconducting materials, which could lead to a generational leap in electrical devices which require far less power to run and would be far more capable than current devices.

Taisuke Matsuno, Yutaro Ohtomo, Maki Someya and Hiroyuki Isobe, "Stereoselectivity in spontaneous assembly of rolled incommensurate carbon bilayers," Nature Communications: March 10, 2021, doi:10.1038/s41467-021-21889-8.

This article is reprinted based by the article from University of Tokyo

Molecular moiré

Molecular moiré.

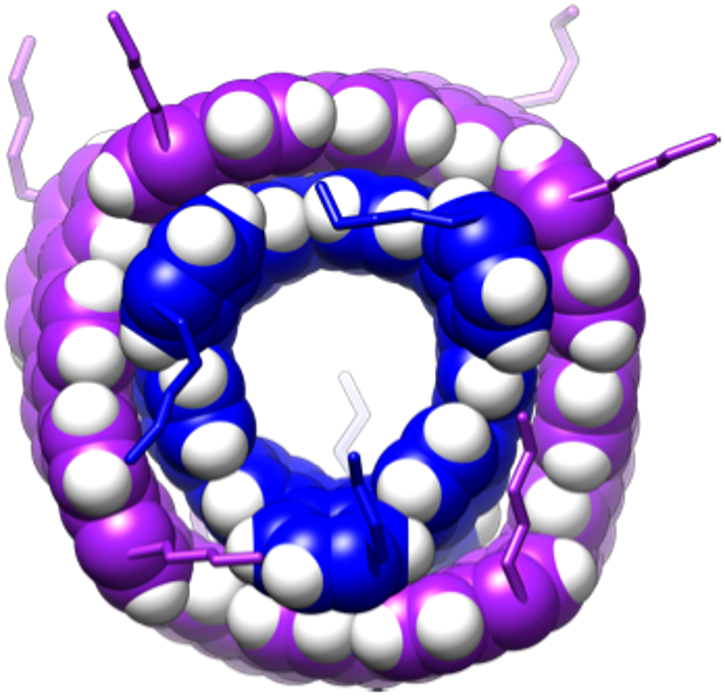

The crystal structure of a carbon bilayer. The purple outer layer and blue inner layer each have a similar arrangement of carbon atoms but are rotated relative to each other by just a few degrees. © 2021 Isobe et al.

Moiré pattern

Moiré pattern. When repeating patterns overlap and are rotated, they create these mesmerizing arrangements called moiré patterns. Here hexagonal grids are rotated in either direction. CC-0 The University of Tokyo/Rohan Mehra
