Single crystal contains heavy atom
Inquiry number
SOL-0000001156
Beamline
BL04B2 (High Energy X-ray Diffraction)
Scientific keywords
| A. Sample category | inorganic material |
|---|---|
| B. Sample category (detail) | solid-state crystal |
| C. Technique | X-ray diffraction |
| D. Technique (detail) | single crystal |
| E. Particular condition | low-T (~ liquid N2) |
| F. Photon energy | X-ray (4-40 keV) |
| G. Target information | crystal structure |
Industrial keywords
| level 1---Application area | Chemical product, industrial material, others |
|---|---|
| level 2---Target | |
| level 3---Target (detail) | |
| level 4---Obtainable information | crystal structure |
| level 5---Technique | diffraction |
Classification
M10.10 single crystal diffraction
Body text

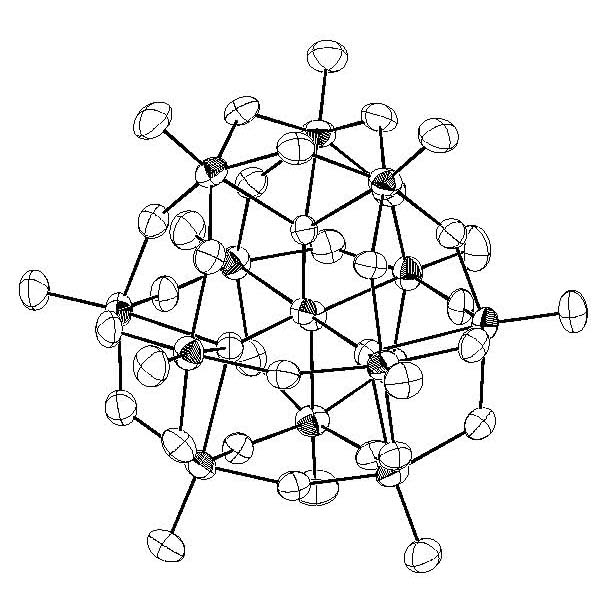

The use of high-energy x-rays makes it possible to perform structure analyses on small-size single crystals containing complicated molecules. The use of high-energy x-rays leads to a collection of high-precision diffraction data with smaller absorption effects. Figure shows the structure of an anion that contains twelve heavy atoms.
Source of the figure
Original paper/Journal article
Journal title
Kluwer Academic/Plenum Publishers, New York, NY, pp 225-232 (2002)
Figure No.
Technique
The use of high-energy x-rays allows us to perform structural analysis on small-size single crystals. This method reveals the complicated structure of single crystals. The use of high-energy x-rays can collect diffraction data with small absorption. Hence, this method is essential when the sample contains heavy atoms.
Source of the figure
No figure
Required time for experimental setup
8 hour(s)
Instruments
| Instrument | Purpose | Performance |
|---|---|---|
| Weissenberg camera | to get diffraction pattern | 38 keV |
References
Related experimental techniques
Questionnaire
The measurement was possible only in SPring-8. Impossible or very difficult in other facilities.
This solution is an application of a main instrument of the beamline.
Ease of measurement
Middle
Ease of analysis
Middle
How many shifts were needed for taking whole data in the figure?
Four-nine shifts
