Exploration of Origin of Acquired Immunity (Press Release)

Release Date
11 Oct, 2013

- Clarification of structure and function of Cmr complex playing a central role in bacterial immune systems -

RIKEN

Key points
• The Cmr complex is a spiral large molecular complex and is composed of six different protein subunits and an RNA.
• The Cmr complex cleaves viral RNAs at five different sites, thereby destroying the virus.
• Research results contribute to clarifying the origin and evolution of the complicated acquired immune systems of higher animals.

RIKEN (President, Ryoji Noyori) has clarified the structure and function of the Cmr complex, which is a large complex playing a central role in bacterial immune systems. This discovery will be a key to elucidating the origin and evolution of the immunity that higher animals have acquired during their evolution. The achievement of this research was realized by the joint research group led by Akeo Shinkai* (senior research scientist) and Yoshihiro Agari (research fellow) from the Research Infrastructure Group, RIKEN SPring-8 Center (Director, Tetsuya Ishikawa) (*currently, a senior research scientist at the Structural Biology Laboratory led by Shigeyuki Yokoyama); Saori Maki (research scientist) from the Bio-specimen Platform Group, RIKEN SPring-8 Center; Koji Yonekura (associated chief scientist) from the Biostructural Mechanism Laboratory, RIKEN SPring-8 Center; and Raymond H. J. Staals (research scientist) and John van der Oost (professor) from Wageningen University in the Netherlands.

All living organisms have immune systems that protect their bodies from external toxic substances and pathogens. There are various types of immune system in different species that are considered to have evolved along with the living organisms. Among the immune systems, acquired immunity includes advanced mechanisms, such as for memorizing information on antigens including viruses; however, both the origin and evolution process of acquired immunity have remained unclear.

Bacteria are living organisms that first appeared in the early stages of the world’s natural history. Many bacteria have a host defense system called the clustered regularly interspaced short palindromic repeat (CRISPR)-Cas system*1, which is similar to an acquired immunity system. The joint research group have been trying to clarify the entire mechanism of this system using Thermus thermophilus HB8*2 as a bacterial model to elucidate the origin and evolution of acquired immunity.

This time, the group isolated the Cmr complex, which is composed of six different Cas proteins*3 and an RNA fragment and plays a central role in the CRISPR-Cas system. Then, they examined in detail the electron microscopy structure and activities of the complex. The results revealed that the Cmr complex forms a unique spiral structure and its RNA fragment binds to part of a viral RNA to trap the virus. It then cleaves the RNA to destroy the virus and prevent infection.

Since the early stages of life on earth, living organisms have continued to fight against viruses. This research provides key findings that may clarify the origin and evolution of the antivirus immune and defense systems of living organisms that have evolved over a long period.

This research was supported by Grants-in-Aid for Scientific Research from Japan Society for the Promotion of Science (Grant No. 25440013). The results were published online in the American scientific journal Molecular Cell on 10 October 2013.

Publication:
"Structure and activity of an RNA-targeting Type III-B CRISPR-Cas complex in Thermus thermophilus"
Staals, R.H.J.,* Agari, Y.,* Maki-Yonekura, S.,* Zhu, Y., Taylor, D.W., van Duijn, E., Barendregt, A., Vlot, M., Koehorst, J.J., Sakamoto, K., Masuda, A., Dohmae, N., Schaap, P.J., Doudna, J.A., Heck, A.J.R., Yonekura, K., van der Oost, J., and Shinkai, A.
(*equal contribution, corresponding author)
Molecular Cell, 52 1 135-145, 10 October 2013.

<<Figures>>

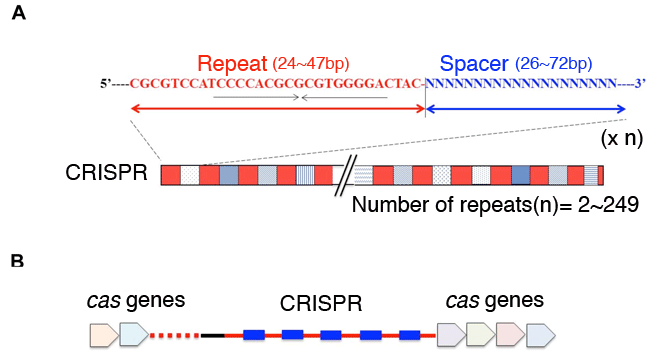

Fig. 1	CRISPR loci and cas genes
Fig. 1 CRISPR loci and cas genes

(A) CRISPR loci consist of ~25-50 bp palindromic repeat sequences (in red), separated by 25-50 bp spacer sequences (in blue). The spacers have no common features in their sequences. The maximum number of repeats is as high as 249.
(B) Cas genes are located close to the CRISPR loci.

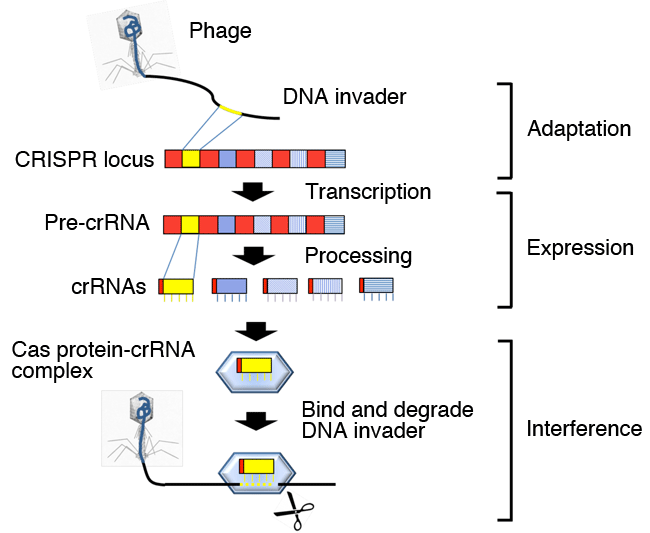

Fig. 2	Action mechanism of CRISPR-Cas system (example)
Fig. 2 Action mechanism of CRISPR-Cas system (example)

The CRISPR-Cas system has three main phases. Parts of DNAs invaded into cells such as those of viruses (phages) are cleaved, and incorporated into the CRISPR locus as a new spacer (adaptation phase). The CRISPR locus is transcribed to generate pre-crRNA, which is cleaved to generate crRNAs (expression phase). The crRNA*4 forms a complex with Cas proteins, and the complex containing the crRNA derived from the DNA invader binds to the complementary sequence of the DNA invader to degrade it (interference phase).
The number of CRISPR loci, their sequences, and the type of cas gene vary among species. Some types of CRISPR-Cas system degrade the RNAs transcribed from DNA invaders.

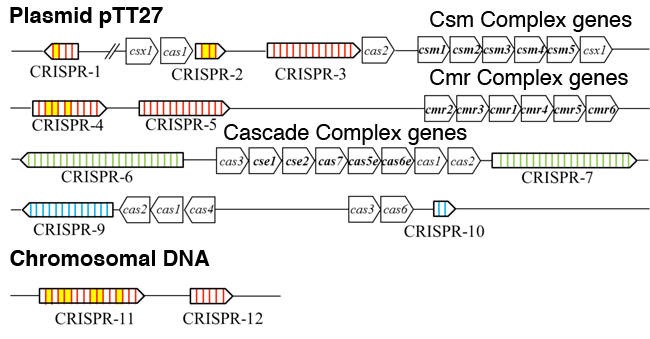

Fig. 3	CRISPR loci and cas genes on genome of T. thermophilus HB8
Fig. 3 CRISPR loci and cas genes on genome of T. thermophilus HB8

T. thermophilus HB8 has nine CRISPR loci on the plasmid pTT27 and two CRISPR loci on the chromosome (here, CRISPR-8 is excluded). These loci are classified into three types (indicated in red, green, and blue) depending on the nucleotide sequence of the repeat. Cas genes belonging to subtypes III-A (Csm)*6, III-B (Cmr), and I-E (Cascade)*5 are in bold letters.
From the analysis results, many crRNAs (in yellow) from particular spacers in CRISPR-1, CRISPR-2, CRISPR-4, and CRISPR-11 were found in the crRNA sequences of the Cmr complex. This indicates that the crRNAs selectively, rather than randomly, bind to the Cmr complex.

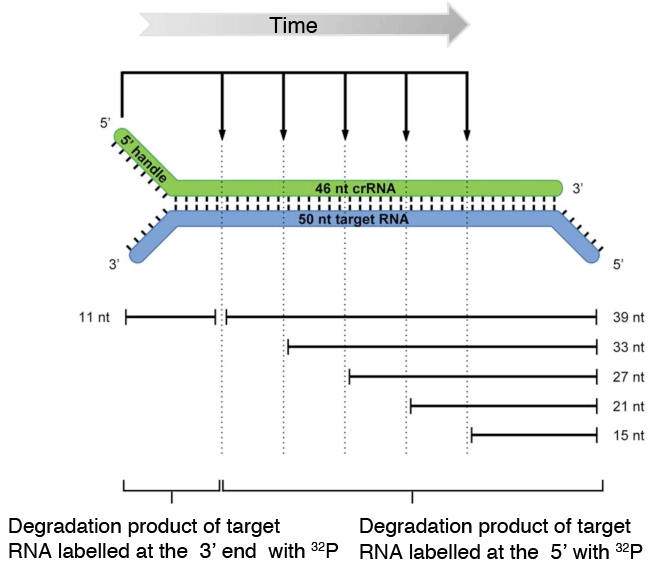

Fig. 4	Model for cleavage of target RNA by T. thermophilus Cmr complex
Fig. 4 Model for cleavage of target RNA by T. thermophilus Cmr complex

The Cmr complex binds to a 50 nt target RNA that contains complementary sequence of the 46 nt crRNA contained in the Cmr complex. Then, the target RNA is cleaved from the 3’ end at five different sites at 6 nt intervals.

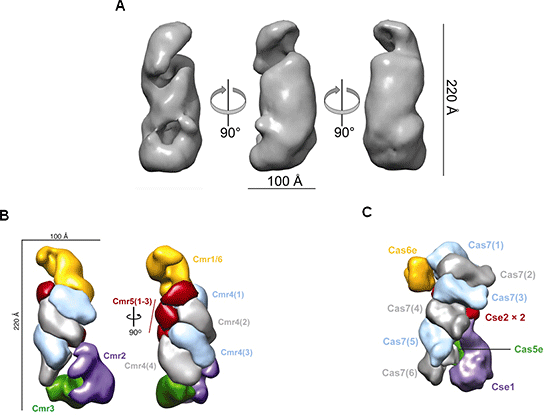

Fig. 5	Structure of Cmr complex obtained by electron microscopy
Fig. 5 Structure of Cmr complex obtained by electron microscopy

(A) Structures of T. thermophilus Cmr complexes obtained by electron microscopy. (B) Cas protein subunit composition of the Cmr complex reconstruction based on the results of mass spectrometry*7 and electron microscopy. The stoichiometry is Cmr1:Cmr2:Cmr3:Cmr4:Cmr5:Cmr6 = 1:1:1:4:3:1. Four Cmr4 and three Cmr5 subunits form a spiral structure.
© Cas protein subunit composition of the E. coli Type I-E (Cascade) complex reconstruction based on the structure obtained by electron microscopy. Six Cas7 subunits form a spiral structure.

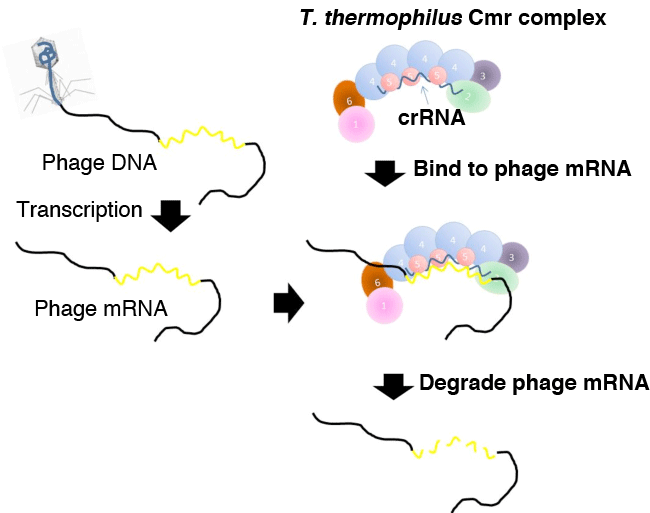

Fig. 6	Mechanism behind activity of T. thermophilus Cmr complex
Fig. 6 Mechanism behind activity of T. thermophilus Cmr complex

The Cmr complex binds to -viral (phage) mRNA at the sequence that is complementary to the crRNA of the Cmr complex, and cleaves it at five different sites. Four Cmr4 subunits located at the center of the Cmr complex and another type of Cmr subunit are possibly have active sites for cleavage.
