BL08W OUTLINE
問い合わせ番号
INS-0000000347
ABSTRACT
BL08W is the only wiggler beamline and the highest X-ray energy beamline in SPring-8.
This beamline is designed for Compton scattering spectroscopy with linearly or elliptically polarized X-rays in the energy ranges of 100 〜 300 keV. The spectroscopy will be widely applied to the studies of Fermiology and magnetism of materials. The beamline serves two experimental stations; magnetic Compton scattering spectrometer using elliptically polarized X-rays which consists in a superconducting magnet and a 10-segmented Ge solid-state detector, high momentum-resolution spectorometer of 0.10 atomic units which consists of a Cauchois-type crystal analyzer and a position sensitive detector.
The beamline is also available for the studies of high energy Bragg scatterings, high-energy X-ray fluorescence analysis, and nuclear excitations.
AREA OF RESEARCH
- Magnetic Compton scattering
- High-resolution Compton scattering
- High-energy Bragg scattering
- High-energy fluorescent X-ray analysis
- Time-resolved pair distribution function analysis (PDF)
KEYWORDS
- Scientific field
Fermiology, Magnetism, Electron momentum density, Elemental analysis - Equipment
Superconducting magnet, Cryocooler, Magnetic Compton spectrometer, Cauchois-type X-ray spectrometer, Multi-elements Ge solid-state detector, X-ray image intensifier camera, Flat area panel detector
SOURCE AND OPTICS
An elliptical multipole wiggler installed on BL08W delivers us linearly or elliptically polarized X-rays. The X-rays emitted from the wiggler are focused and monochromatized by an asymmetric Johann type monochromator (Si 400 / Si 620 / Si 771) or a doubly bent monochromator (Si 400). The parameters on the sample are as follows.

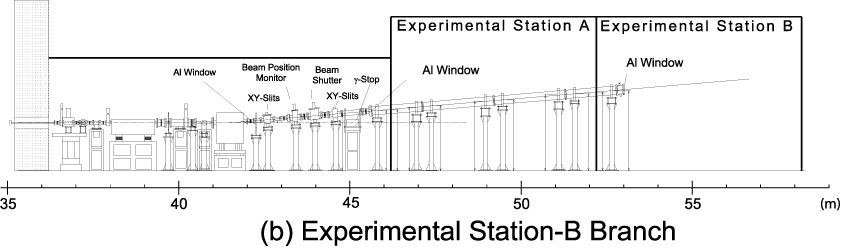

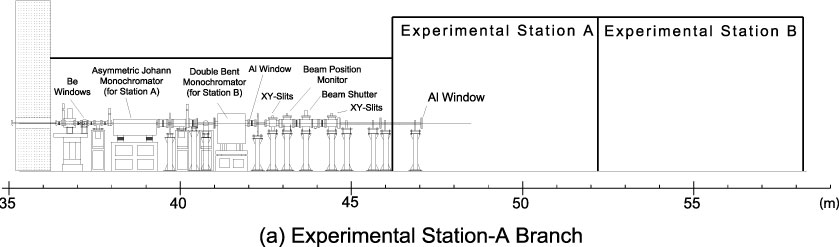

- Schematic View of Beamline
- X-rays at Sample
- Station-A
| Energy range | 110 - 170 / 170 - 270 / 270 - 300 keV |
| Energy resolution | ΔE/E ~ 1 × 10-3 |
| Photon flux | 5 × 109 ph/s at 300 keV |
| Beam size | 3 mm (H) × 1 mm (W) |
| Energy range | 100 - 210 keV |
| Energy resolution | ΔE/E < 1 × 10-3 |
| Photon flux | 1 × 1013 ph/s at 100 keV |
| Beam size | 1 mm (H) × 2 mm (W) |
EXPERIMENTAL STATIONS
- Magnetic Compton scattering spectrometer
- High resolution Compton scattering spectrometer
- High energy X-ray fluorescent spectrometer
